Utilities

  • core.get_current_modname(): returns the currently loading mod's name, when we are loading a mod
  • core.get_modpath(modname): returns virtual path of given mod including the trailing separator. This is useful to load additional Lua files contained in your mod: e.g. dofile(core.get_modpath(core.get_current_modname()) .. "stuff.lua")
  • core.get_language(): returns two strings
  • the current gettext locale
  • the current language code (the same as used for client-side translations)
  • core.get_version(): returns a table containing components of the engine version. Components:
    • project: Name of the project, eg, "MultiCraft"
    • string: Simple version, eg, "1.2.3-dev"
    • hash: Full git version (only set if available), eg, "1.2.3-dev-01234567-dirty" Use this for informational purposes only. The information in the returned table does not represent the capabilities of the engine, nor is it reliable or verifiable. Compatible forks will have a different name and version entirely. To check for the presence of engine features, test whether the functions exported by the wanted features exist. For example: if core.check_for_falling then ... end.
  • core.sha1(data, [raw]): returns the sha1 hash of data
    • data: string of data to hash
    • raw: return raw bytes instead of hex digits, default: false
  • core.get_csm_restrictions(): returns a table of Flags indicating the restrictions applied to the current mod.
  • If a flag in this table is set to true, the feature is RESTRICTED.
  • Possible flags: load_client_mods, chat_messages, read_itemdefs, read_nodedefs, lookup_nodes, read_playerinfo
  • core.copy_to_clipboard(text): Copies text to the clipboard

Logging

  • core.debug(...)
    • Equivalent to core.log(table.concat({...}, "\t"))
  • core.log([level,] text)
    • level is one of "none", "error", "warning", "action", "info", or "verbose". Default is "none".

Global callback registration functions

Call these functions only at load time!

  • core.register_globalstep(function(dtime))
    • Called every client environment step, usually interval of 0.1s
  • core.register_on_mods_loaded(function())
    • Called just after mods have finished loading.
  • core.register_on_shutdown(function())
    • Called before client shutdown
    • Warning: If the client terminates abnormally (i.e. crashes), the registered callbacks will likely not be run. Data should be saved at semi-frequent intervals as well as on server shutdown.
  • core.register_on_receiving_chat_message(function(message))
    • Called always when a client receive a message
    • Return true to mark the message as handled, which means that it will not be shown to chat
  • core.register_on_sending_chat_message(function(message))
    • Called always when a client send a message from chat
    • Return true to mark the message as handled, which means that it will not be sent to server
  • core.register_chatcommand(cmd, chatcommand definition)
    • Adds definition to core.registered_chatcommands
  • core.unregister_chatcommand(name)
    • Unregisters a chatcommands registered with register_chatcommand.
  • core.register_on_chatcommand(function(command, params))
    • Called always when a chatcommand is triggered, before core.registered_chatcommands is checked to see if that the command exists, but after the input is parsed.
    • Return true to mark the command as handled, which means that the default handlers will be prevented.
  • core.register_on_death(function())
    • Called when the local player dies
  • core.register_on_hp_modification(function(hp))
    • Called when server modified player's HP
  • core.register_on_damage_taken(function(hp))
    • Called when the local player take damages
  • core.register_on_formspec_input(function(formname, fields))
    • Called when a button is pressed in the local player's inventory form
    • Newest functions are called first
    • If function returns true, remaining functions are not called
  • core.register_on_dignode(function(pos, node))
    • Called when the local player digs a node
    • Newest functions are called first
    • If any function returns true, the node isn't dug
  • core.register_on_punchnode(function(pos, node))
    • Called when the local player punches a node
    • Newest functions are called first
    • If any function returns true, the punch is ignored
  • core.register_on_placenode(function(pointed_thing, node))
    • Called when a node has been placed
  • core.register_on_item_use(function(item, pointed_thing))
    • Called when the local player uses an item.
    • Newest functions are called first.
    • If any function returns true, the item use is not sent to server.
  • core.register_on_modchannel_message(function(channel_name, sender, message))
    • Called when an incoming mod channel message is received
    • You must have joined some channels before, and server must acknowledge the join request.
    • If message comes from a server mod, sender field is an empty string.
  • core.register_on_modchannel_signal(function(channel_name, signal))
    • Called when a valid incoming mod channel signal is received
    • Signal id permit to react to server mod channel events
    • Possible values are: 0: join_ok 1: join_failed 2: leave_ok 3: leave_failed 4: event_on_not_joined_channel 5: state_changed
  • core.register_on_inventory_open(function(inventory))
    • Called when the local player open inventory
    • Newest functions are called first
    • If any function returns true, inventory doesn't open
  • core.register_on_hud_button_press(function(btn_name))
    • Called when a csm_button HUD element is pressed
    • If function returns true, remaining functions are not called
  • core.register_on_tab(function())
    • Called when tab key pressed

Sounds

  • core.sound_play(spec, parameters): returns a handle
    • spec is a SimpleSoundSpec
    • parameters is a sound parameter table
  • core.sound_stop(handle)
    • handle is a handle returned by core.sound_play
  • core.sound_fade(handle, step, gain)
    • handle is a handle returned by core.sound_play
    • step determines how fast a sound will fade. Negative step will lower the sound volume, positive step will increase the sound volume.
    • gain the target gain for the fade.

Timing

  • core.after(time, func, ...)
    • Call the function func after time seconds, may be fractional
    • Optional: Variable number of arguments that are passed to func
  • core.get_us_time()
    • Returns time with microsecond precision. May not return wall time.
  • core.get_timeofday()
    • Returns the time of day: 0 for midnight, 0.5 for midday

Map

  • core.get_node_or_nil(pos)
    • Returns the node at the given position as table in the format {name="node_name", param1=0, param2=0}, returns nil for unloaded areas or flavor limited areas.
  • core.get_node_light(pos, timeofday)
    • Gets the light value at the given position. Note that the light value "inside" the node at the given position is returned, so you usually want to get the light value of a neighbor.
    • pos: The position where to measure the light.
    • timeofday: nil for current time, 0 for night, 0.5 for day
    • Returns a number between 0 and 15 or nil
  • core.find_node_near(pos, radius, nodenames, [search_center]): returns pos or nil
    • radius: using a maximum metric
    • nodenames: e.g. {"ignore", "group:tree"} or "default:dirt"
    • search_center is an optional boolean (default: false) If true pos is also checked for the nodes
  • core.find_nodes_in_area(pos1, pos2, nodenames, [grouped])
    • pos1 and pos2 are the min and max positions of the area to search.
    • nodenames: e.g. {"ignore", "group:tree"} or "default:dirt"
    • If grouped is true the return value is a table indexed by node name which contains lists of positions.
    • If grouped is false or absent the return values are as follows: first value: Table with all node positions second value: Table with the count of each node with the node name as index
    • Area volume is limited to 4,096,000 nodes
  • core.find_nodes_in_area_under_air(pos1, pos2, nodenames): returns a list of positions.
    • nodenames: e.g. {"ignore", "group:tree"} or "default:dirt"
    • Return value: Table with all node positions with a node air above
    • Area volume is limited to 4,096,000 nodes
  • core.line_of_sight(pos1, pos2): returns boolean, pos
    • Checks if there is anything other than air between pos1 and pos2.
    • Returns false if something is blocking the sight.
    • Returns the position of the blocking node when false
    • pos1: First position
    • pos2: Second position

  • core.raycast(pos1, pos2, objects, liquids): returns Raycast

    • Creates a Raycast object.
    • pos1: start of the ray
    • pos2: end of the ray
    • objects: if false, only nodes will be returned. Default is true.
    • liquids: if false, liquid nodes won't be returned. Default is false.

  • core.find_nodes_with_meta(pos1, pos2)

    • Get a table of positions of nodes that have metadata within a region {pos1, pos2}.
  • core.get_meta(pos)
    • Get a NodeMetaRef at that position
  • core.get_node_level(pos)
    • get level of leveled node (water, snow)
  • core.get_node_max_level(pos)
    • get max available level for leveled node

Player

  • core.send_chat_message(message)
    • Act as if message was typed by the player into the terminal.
  • core.run_server_chatcommand(cmd, param)
    • Alias for core.send_chat_message("/" .. cmd .. " " .. param)
  • core.clear_out_chat_queue()
    • Clears the out chat queue
  • core.localplayer
    • Reference to the LocalPlayer object. See LocalPlayer class reference for methods.

Privileges

  • core.get_privilege_list()
    • Returns a list of privileges the current player has in the format {priv1=true,...}
  • core.string_to_privs(str): returns {priv1=true,...}
  • core.privs_to_string(privs): returns "priv1,priv2,..."
    • Convert between two privilege representations

Client Environment

  • core.get_player_names()
    • Returns list of player names on server (nil if CSM_RF_READ_PLAYERINFO is enabled by server)
  • core.disconnect()
    • Disconnect from the server and exit to main menu.
    • Returns false if the client is already disconnecting otherwise returns true.
  • core.get_server_info()
  • core.send_respawn()
    • Sends a respawn request to the server.

Storage API

  • core.get_mod_storage():
    • returns reference to mod private StorageRef
    • must be called during mod load time

Mod channels

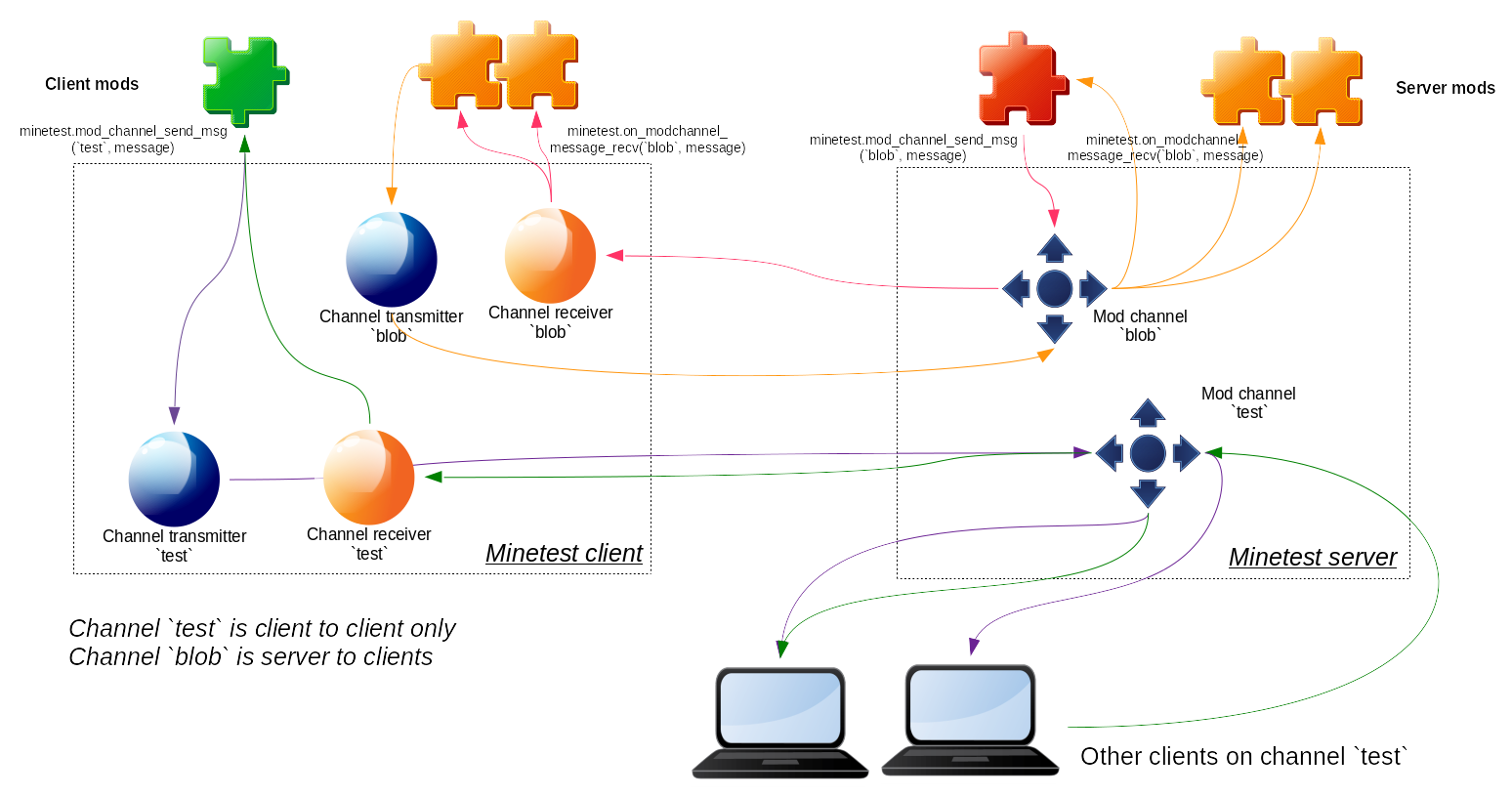

Mod channels communication scheme

  • core.mod_channel_join(channel_name)
    • Client joins channel channel_name, and creates it, if necessary. You should listen from incoming messages with core.register_on_modchannel_message call to receive incoming messages. Warning, this function is asynchronous.

Particles

  • core.add_particle(particle definition)

  • core.add_particlespawner(particlespawner definition)

    • Add a ParticleSpawner, an object that spawns an amount of particles over time seconds
    • Returns an id, and -1 if adding didn't succeed

  • core.delete_particlespawner(id)

    • Delete ParticleSpawner with id (return value from core.add_particlespawner)

Misc.

  • core.parse_json(string[, nullvalue]): returns something
    • Convert a string containing JSON data into the Lua equivalent
    • nullvalue: returned in place of the JSON null; defaults to nil
    • On success returns a table, a string, a number, a boolean or nullvalue
    • On failure outputs an error message and returns nil
    • Example: parse_json("[10, {\"a\":false}]"), returns {10, {a = false}}
  • core.write_json(data[, styled]): returns a string or nil and an error message
    • Convert a Lua table into a JSON string
    • styled: Outputs in a human-readable format if this is set, defaults to false
    • Unserializable things like functions and userdata are saved as null.
    • Warning: JSON is more strict than the Lua table format.
      1. You can only use strings and positive integers of at least one as keys.
      2. You can not mix string and integer keys. This is due to the fact that JSON has two distinct array and object values.
    • Example: write_json({10, {a = false}}), returns "[10, {\"a\": false}]"
  • core.serialize(table): returns a string
    • Convert a table containing tables, strings, numbers, booleans and nils into string form readable by core.deserialize
    • Example: serialize({foo='bar'}), returns 'return { ["foo"] = "bar" }'
  • core.deserialize(string): returns a table
    • Convert a string returned by core.deserialize into a table
    • string is loaded in an empty sandbox environment.
    • Will load functions, but they cannot access the global environment.
    • Example: deserialize('return { ["foo"] = "bar" }'), returns {foo='bar'}
    • Example: deserialize('print("foo")'), returns nil (function call fails)
      • error:[string "print("foo")"]:1: attempt to call global 'print' (a nil value)
  • core.compress(data, method, ...): returns compressed_data
    • Compress a string of data.
    • method is a string identifying the compression method to be used.
    • Supported compression methods:
      • Deflate (zlib): "deflate"
      • Zstandard: "zstd"
    • ... indicates method-specific arguments. Currently defined arguments are:
      • Deflate: level - Compression level, 0-9 or nil.
      • Zstandard: level - Compression level. Integer or nil. Default 3. Note any supported Zstandard compression level could be used here, but these are subject to change between Zstandard versions.
  • core.decompress(compressed_data, method, ...): returns data
    • Decompress a string of data using the algorithm specified by method.
    • See documentation on core.compress() for supported compression methods.
    • ... indicates method-specific arguments. Currently, no methods use this
  • core.rgba(red, green, blue[, alpha]): returns a string
    • Each argument is a 8 Bit unsigned integer
    • Returns the ColorString from rgb or rgba values
    • Example: core.rgba(10, 20, 30, 40), returns "#0A141E28"
  • core.encode_base64(string): returns string encoded in base64
    • Encodes a string in base64.
  • core.decode_base64(string): returns string
    • Decodes a string encoded in base64.
  • core.gettext(string) : returns string
    • look up the translation of a string in the gettext message catalog
  • fgettext_ne(string, ...)
    • call core.gettext(string), replace "$1"..."$9" with the given extra arguments and return the result
  • fgettext(string, ...) : returns string
    • same as fgettext_ne(), but calls core.formspec_escape before returning result
  • core.pointed_thing_to_face_pos(placer, pointed_thing): returns a position
    • returns the exact position on the surface of a pointed node
  • core.global_exists(name)
    • Checks if a global variable has been set, without triggering a warning.

UI

  • core.ui.minimap
    • Reference to the minimap object. See Minimap class reference for methods.
    • If client disabled minimap (using enable_minimap setting) this reference will be nil.
  • core.camera
    • Reference to the camera object. See Camera class reference for methods.
  • core.show_formspec(formname, formspec) : returns true on success
    • Shows a formspec to the player
  • core.display_chat_message(message) returns true on success
    • Shows a chat message to the current player.
  • core.set_visible_controls(btns)
    • Sets the visible touchscreen controls
    • If the btns table is empty or nil, all controls are visible.
    • Example: {jump = true, joystick = true}
    • No-op if there is no touchscreen
